• Case Studies and Applications

    Many companies incorporate the patented Shibata Engine (Ultrafine Bubble Generator) into their operations because of its overwhelming performance.

    broken image

    Agriculture

    - Improved firmness and luster of vegetables

    - Boosted fruit yield and sweetness

      KantoKoushin-KUBOTA

    broken image

    Cleaning

    - Removed stains on clothes

      TOSHIBA LIFESTYLE PRODUCTS & SERVICES CORPORATION

    - Removed grease stains in kitchen

      MARUYAMA MFG. CO., INC.

      A major food company​

    - Removed urinary stones from restrooms

      MARUYAMA MFG. CO., INC.

    - Improved salt removal efficiency

    - Adopted for cleaning air conditioners

      HITOWA Life Partner Co., Ltd.

    broken image

    Fishery

    - Hastened growth of farmed fish

      Dream Workers Co., Ltd.

    - Extended freshness of fishes

    broken image

    Environment

    - Water purification effects

  • Case1: TOSHIBA LIFESTYLE PRODUCTS & SERVICES CORPORATION

    Product

    Equipped w/ Ultrafine Bubble Wash W
    Toshiba Washing Machine Zaboon Series. Drum dry washing machines, vertical washers/dryers, fully automatic washing machines.

    Effects

    Your usual laundry routine — pure white and refreshing, with every fiber cleansed! This product purifies clothes with Ultrafine Bubble W and removes skin oil, spills, and even six-month-old yellow stains. It draws out the power of the detergent with ultrafine bubbles, making every piece of clothing speckless. It also rinses out detergent without using extra water, leaving the fabric softener ingredients to penetrate deep into the fibers. It even boosts your laundry's softness and fragrance.



    Implementing ultrafine bubbles provided the following benefits:



    1. Cleansing
    Combining ultrafine bubbles and detergent significantly improved skin oil cleaning performance.

    • Inhibited yellowing caused by skin oil
    • Thoroughly cleansed laundry even at low temperatures

    2. Rinsing
    Using ultrafine bubbles as rinse water reduced residual detergent.
    It also lowered detergent residue without extra water or time and improved the effectiveness of rinsing in the regular laundry routine (standard course).



    3. Flexibility
    Combining ultrafine bubbles and fabric softeners gave the towels a soft finish.



    4. Scenting
    Combining ultrafine bubbles with aromatic fabric softeners enhanced the fragrance.
    It boosted SOFTNESS and FRAGRANCE without adding extra fabric softener or time to the regular laundry routine (standard course).

    Applications

    Ultrafine bubbles quickly seep into detergent cases, enhancing the cleaning ingredients. The pressure of the water supply to the ultrafine bubble generator creates a near-vacuum pressure, which turns the water's air components into nano-sized, microscopic bubbles.

  • Case2: MARUYAMA MFG. CO., INC.

    Product

    UFB Ultra Pump UFB202B-15

    Effects

    Removes persistent grease stains on range hoods, fryers, and walls in restaurants and home kitchens. The UFB allowed the restaurant to clean using only tap water without needing cleaning agents or other liquids.

    broken image

    Applications

    Cleans restaurant kitchens using an ultrafine pump. Removes grease stains all at once by simply pouring ultrafine bubble water all over the surface. See its effectiveness in the video below.

    Product

    UFB202M-DX 100V Motor Type

    broken image

    Applications

    Configured and permanently installed a bypass route in the men's restroom that branches off the main pipe.
    broken image

    Adopted for men's restroom urinals in public transportation facilities and corporate offices.

    broken image

    Rapid installation in small spaces.

    Effects

    We confirmed that the urinary stones dissolved and flowed away because of the ultrafine bubbles. The remaining urinary stones were easily removed with a simple touch. Since the urinary stones dissolved gradually, they did not accumulate inside the piping. The foul odor also went away with them. Before this, the restaurant had to rely on urinary stone removers (costing approx. 30,000 yen/year). This became unnecessary when they implemented ultrafine bubbles.
    broken image

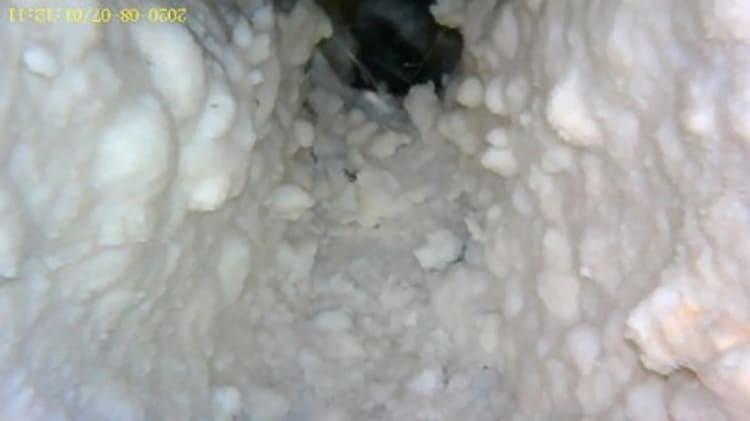

    Before Installation

    Hard urinary stones covered the entire inside of the piping, obstructing visibility.

    broken image

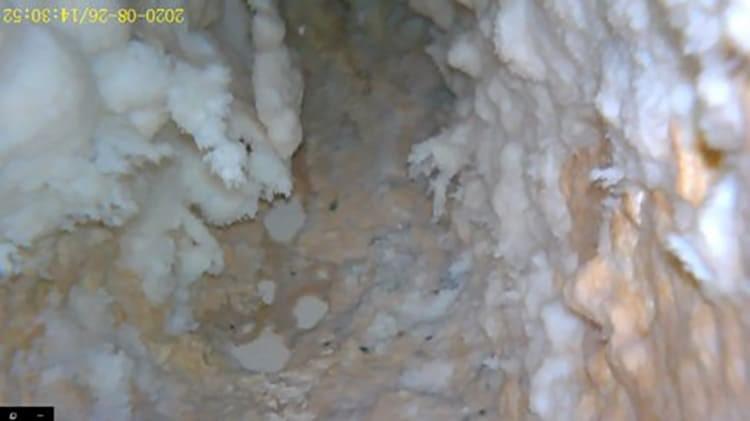

    Approx. 2 Weeks Later

    The urinary stones dissolved and thinned throughout the piping, increasing visibility.

    broken image

    Approx. 3 Weeks Later

    Approx. 3 Weeks Later
    The white urinary clusters covering the entire inside of the piping have melted away, thinning the urinary stones' overall thickness.

  • Case3: KantoKoushin-KUBOTA

    Product

    Ultra Pump UFB320EA

    Effects

    Promoting Vegetable Growth
    This product significantly boots yield when used in agricultural irrigation, accelerating growth and speeding up the harvest period.

    broken image

    Applications

    broken image

    The product was implemented for agricultural irrigation for a wide range of farmers, scaling from small to large.



    • Example of Implementation in a Mini-Tomato Greenhouse (Hydroponic Cultivation)

    Boosted total yield by 131% in about four months. UFB accelerated harvest by one week and raised the final yield.

    broken image
    • Example of Implementation for Green Leaf Lettuce (Hydroponics).

    Increased leaf count and height and shortened harvest by four to five days.

  • Case4: A major food company​

    Product

    U10N - Standard Stainless Model

    broken image

    Effects

    The product was used to clean a food processing plant.
    It reduced cleaning time, which in turn extended production time.
    It also saved water and cut costs.

    broken image

    Applications

    The plant used the UFB Ultra Pump to clean stainless steel trays used in food processing. Experiments were conducted using tap water only, tap water + UFB, alkaline ionized water + UFB, and hot water + UFB patterns. All results showed UFB to reduce residual dirt.

  • Case5: HITOWA Life Partner Co., Ltd.

    Product

    MUFB Ultra Pump High-pressure Cleaner w/ Ultrafine Bubble

    Effects

    Ultrafine bubble cleaning removes residue and ensures long-lasting cleanliness.

    Applications

    Osouji Honpo, a house cleaning chain operated by HITOWA Life Partner Co., implemented an air conditioner cleaning service that uses ultrafine bubbles.

    broken image

    It also rinses out detergent efficiently, leading to shorter cleaning times and saving water.

    broken image

    Ultrafine bubbles boost cleaning power. Save detergent and the environment at the same time!

  • Case6: Dream Workers Co., Ltd.

    Product

    UFB Generator for Aquaculture

    Effects

    • Boosted eel growth rate.
    • Also improved water clarity and quality.

    Applications

    Eel importer and wholesaler Dream Workers Corporation implemented the UFB Generator for Aquaculture in their operations.

  • If you have any questions, contact us via inquiry form
